| Quantity: | |
|---|---|
Copper
4.0 mm, 2.0 mm, 3.0 mm
Eco-Friendly
Electric
Air Conditioning Fitting
Industrial
3 years
Free Spare Parts
uv printing
English
Zhejiang, China
Coolway

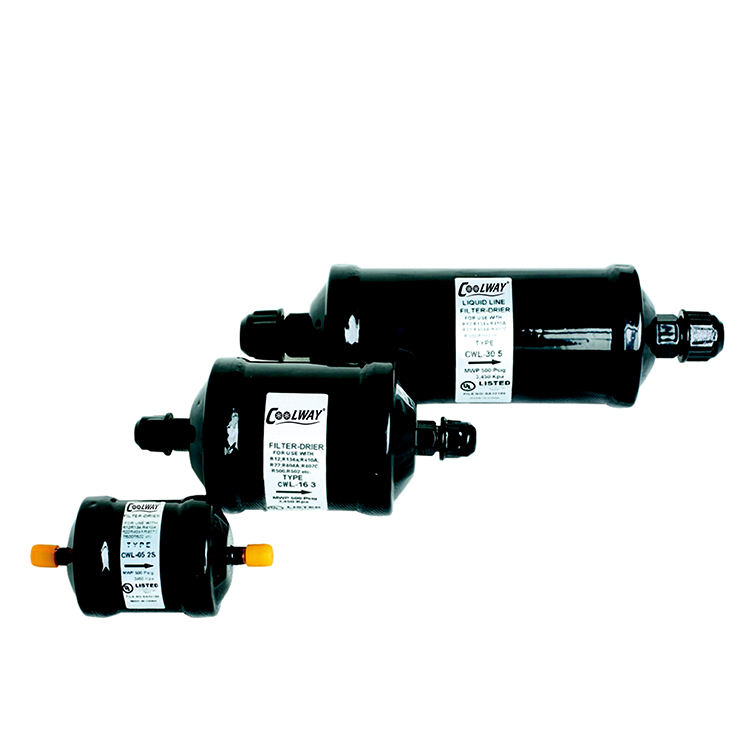

CWL Liquid I ine Filter-Driers
New
Single item
15X12X10 cm
10.000 kg
| Model | Connections | Flow Capacity Tons@1psi(For KW,multiply tons by 3.5)*++ | (In)Dimensions | ||||||||
|
| ODF | SAE | R134a | R12 | R22/R410A | R22 | R404A/R507 | R502 | A | B | C |
| CWL-032 |
| 1/4 | 2 | 1.7 | 2 | 2 | 1.4 | 1.4 | 4.37 | 1.65 | 2.6 |
| CWL-032S | 1/4 |
| 2 | 1.7 | 2 | 2 | 1.4 | 1.4 | 3.86 | 1.65 | 2.6 |
| CWL-033 |
| 3/8 | 4.9 | 4 | 5.4 | 5.4 | 3.7 | 3.7 | 4.76 | 1.65 | 2.6 |
| CWL-033S | 3/78 |
| 4.9 | 4 | 5.4 | 5.4 | 3.7 | 3.7 | 3.86 | 1.65 | 2.6 |
| CWL-052 |
| 1/4 | 2 | 1.7 | 2.3 | 2.3 | 1.4 | 1.4 | 4.76 | 2.13 | 3.03 |
| CWL-052S | 1/4 |
| 2 | 1.7 | 2.3 | 2.3 | 1.4 | 1.4 | 4.45 | 2.13 | 3.03 |
| CWL-053 |
| 3/8 | 5.1 | 4.2 | 5.4 | 5.4 | 4 | 4 | 5.16 | 2.13 | 3.03 |
| CWL-053S | 3/8 |
| 5.1 | 4.2 | 5.4 | 5.4 | 4 | 4 | 4.53 | 2.13 | 3.03 |
| CWL-082 |
| 1/4 | 2 | 1.7 | 2.3 | 2.3 | 1.4 | 1.4 | 5.79 | 2.13 | 4.02 |
| CWL-082S | 1/4 |
| 2 | 1.7 | 2.3 | 2.3 | 1.4 | 1.4 | 5.43 | 2.13 | 4.02 |
| CWL-083 |
| 3/8 | 5.4 | 4.2 | 6 | 6 | 4 | 4 | 6.18 | 2.13 | 4.02 |
| CWL-083S | 3/8 |
| 5.4 | 4.2 | 6 | 6 | 4 | 4 | 5.51 | 2.13 | 4.02 |
| CWL-084 |
| 1/2 | 7.4 | 6.2 | 8.3 | 8.2 | 5.7 | 5.7 | 6.38 | 2.13 | 4.02 |
| CWL-084S | 1/2 |
| 7.4 | 6.2 | 8.3 | 8.2 | 5.7 | 5.7 | 5.59 | 2.13 | 4.02 |
| CWL-163 |
| 3/8 | 5.4 | 5.1 | 6.9 | 6.9 | 4.6 | 4.5 | 6.57 | 2.99 | 4.41 |
| CWL-163S | 3/8 |
| 5.4 | 5.1 | 6.9 | 6.9 | 4.6 | 4.5 | 5.91 | 2.99 | 4.41 |
| CWL-164 |
| 1/2 | 8.6 | 6.8 | 9.4 | 9.4 | 6.3 | 6.3 | 6.77 | 2.99 | 4.41 |
| CWL-164S | 1/2 |
| 8.6 | 6.8 | 9.4 | 9.4 | 6.3 | 6.3 | 5.98 | 2.99 | 4.41 |
| CWL-165 |
| 5/8 | 12.3 | 10 | 13.4 | 13.3 | 8.6 | 8.6 | 7.17 | 2.99 | 4.41 |
| CWL-165S | 5/8 |
| 12.3 | 10 | 13.4 | 13.3 | 8.6 | 8.6 | 6.3 | 2.99 | 4.41 |
| CWL-304 |
| 1/2 | 8.8 | 7.1 | 9.7 | 9.7 | 6.3 | 6.3 | 9.8 | 2.99 | 7.44 |
| CWL-304S | 1/2 |
| 8.8 | 7.1 | 9.7 | 9.7 | 6.3 | 6.3 | 9.02 | 2.99 | 7.44 |
| CWL-305 |
| 5/8 | 12.6 | 10.5 | 14 | 14 | 9.4 | 9.4 | 10.2 | 2.99 | 7.44 |
| CWL-305S | 5/8 |
| 12.6 | 10.5 | 14 | 14 | 9.4 | 9.4 | 9.33 | 2.99 | 7.44 |
| CWL-306 |
| 3/4 | 17.7 | 14.5 | 19.4 | 19.3 | 12.9 | 12.7 | 10.6 | 2.99 | 7.52 |
| CWL-306S | 3/4 |
| 17.7 | 14.5 | 19.4 | 19.3 | 12.9 | 12.7 | 9.49 | 2.99 | 7.52 |
| CWL-307S | 7/8 |
| 17.7 | 14.5 | 19.4 | 19.3 | 12.9 | 12.7 | 9.69 | 2.99 | 7.52 |
| CWL-415 |
| 5/8 | 15.1 | 12.2 | 16.6 | 16.5 | 10.6 | 10.5 | 10.28 | 3.5 | 7.52 |
| CWL-415S | 5/8 |
| 15.1 | 12.2 | 16.6 | 16.5 | 10.6 | 10.5 | 9.41 | 3.5 | 7.52 |
| CWL-417S | 7/8 |
| 25.9 | 21 | 28.6 | 28.4 | 18.6 | 18.5 | 9.76 | 3.5 | 7.52 |
| CWL-419S | 1-1/8 |
| 25.9 | 21 | 28.6 | 28.4 | 18.6 | 18.5 | 9.8 | 3.5 | 7.52 |
1.Q: Are you a factory or trading company?
A: We are a refrigeration group with 2 sub factories.
2.Q: What if there is a problem with quality?
A: Our products are strictly inspected before delivery , also we have a basic guarantee 1-2 years ,
we will send you new free products to replace the damaged items due to quality problem .
3.Q: What is your payment and delivery time?
A: Pay by T/T bank account transfer or alibaba ,delivery time is around 15-30days after advanced payment.
4.Q: Why with you ?
A: We are a professional refrigeration spare parts supplier to meet all your demands and service.
5.Q: I have an idea for a new product, but don't know if it can be manufactured. Can you help?
A: Sure, you can send us the relative information, we will reply you within 3 days.
