| Quantity: | |
|---|---|
Copper
2.0 mm, 3.0 mm, 4.0 mm
Eco-Friendly
Electric
Air Conditioning Fitting
Industrial
3 years
Free Spare Parts
Silk Screen Printing, uv printing
English
Zhejiang, China
Coolway

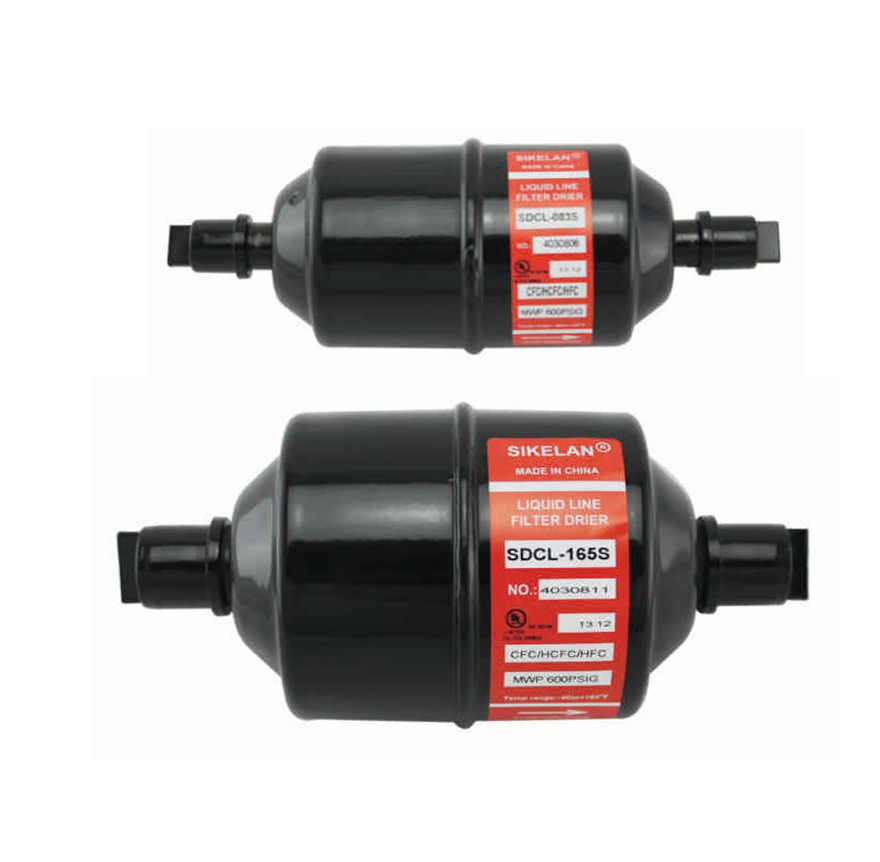

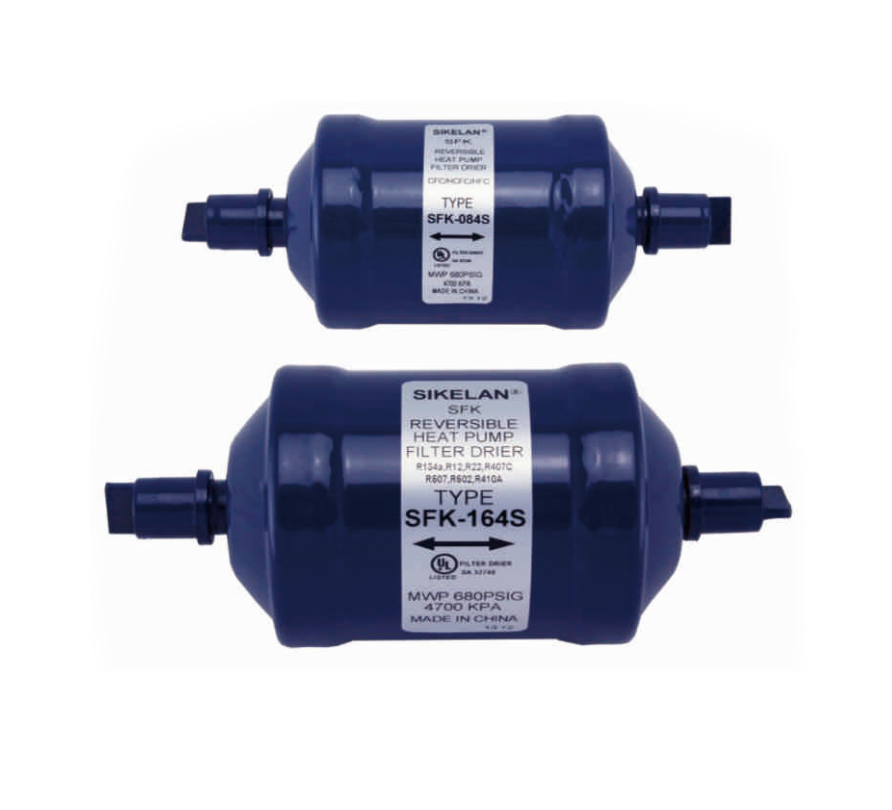

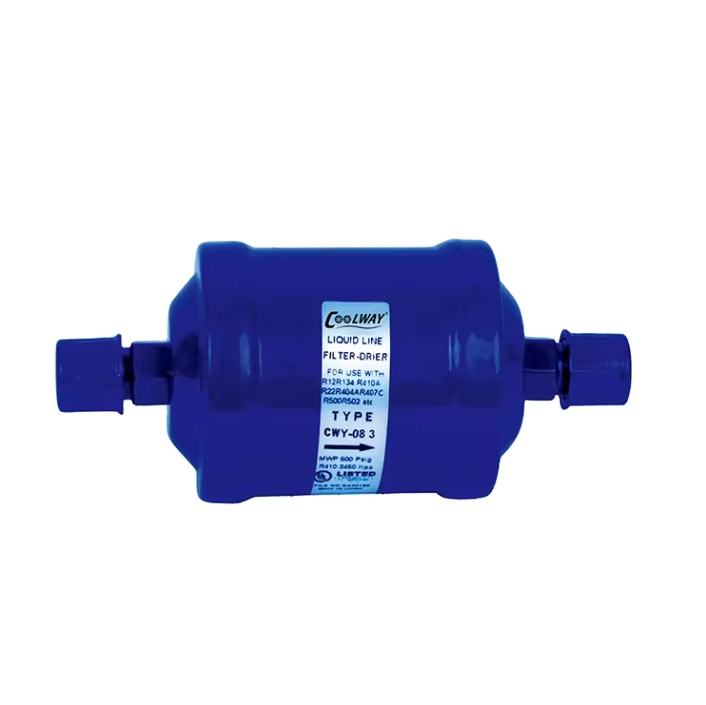

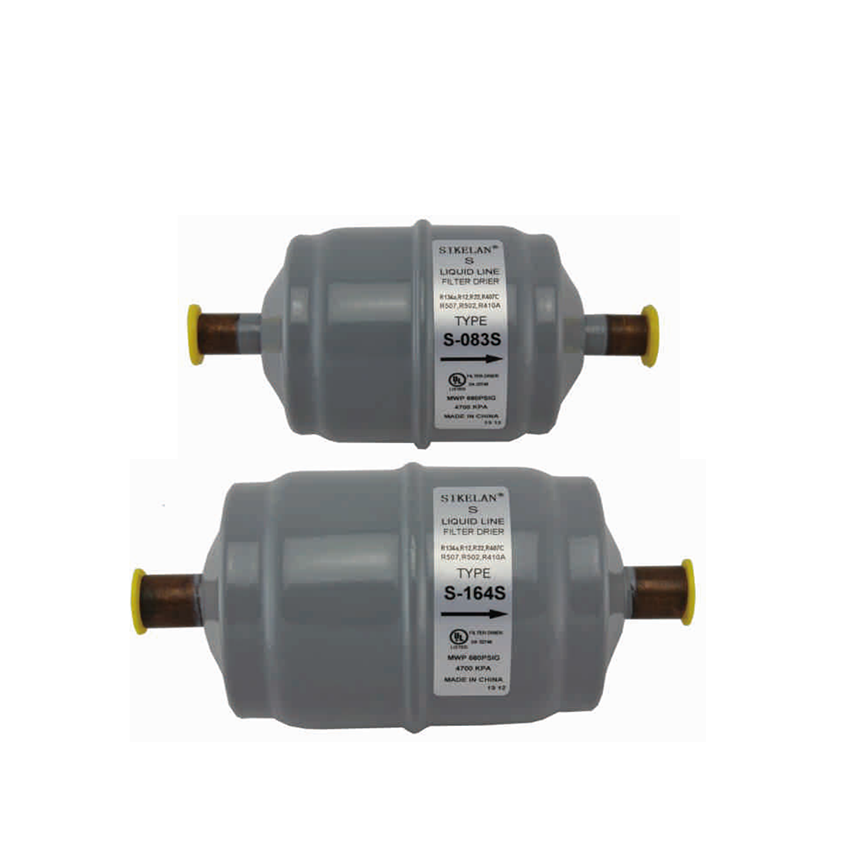

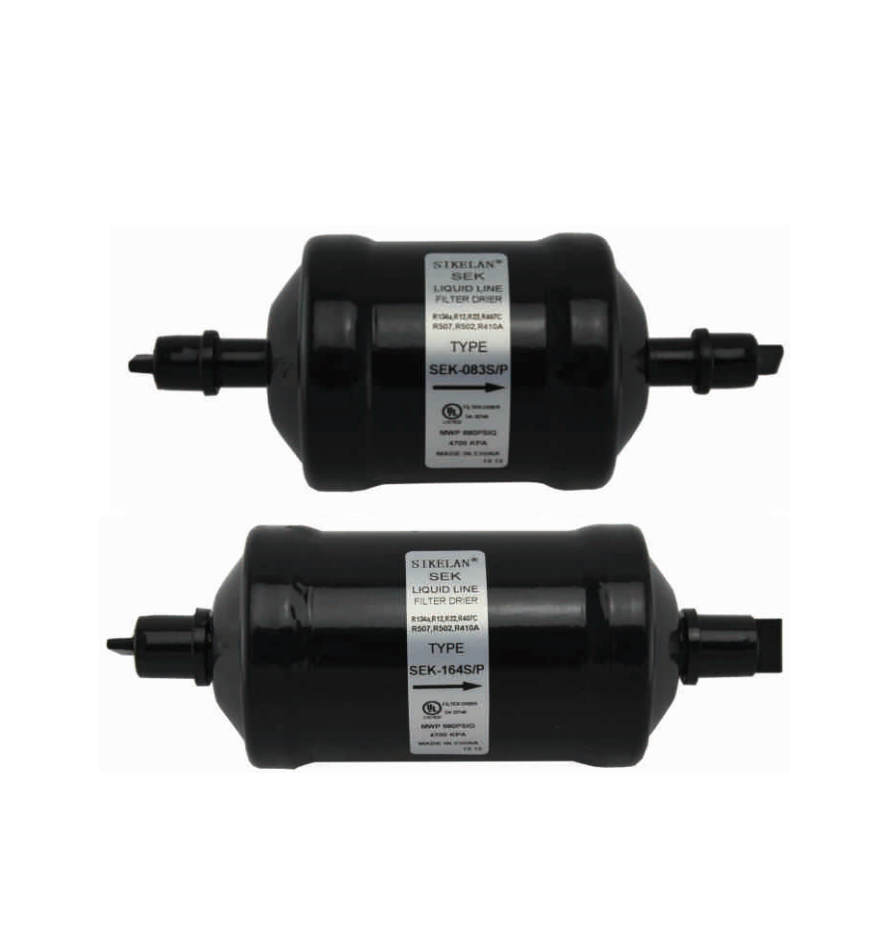

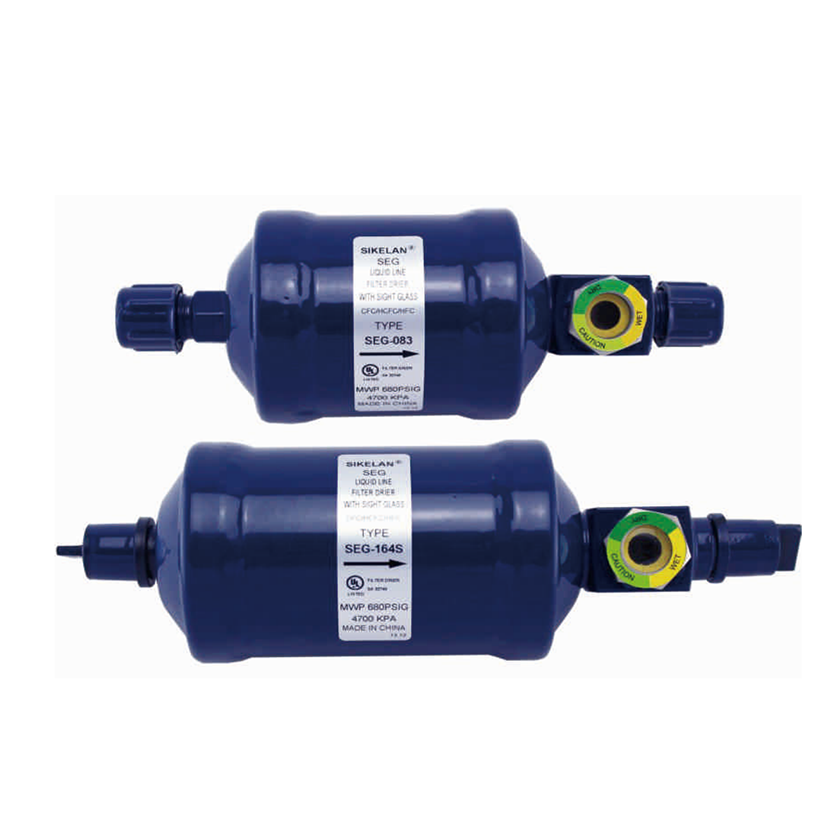

CW Liquid Line Filter-Driers
New
Single item
20X12X10 cm
12.000 kg
| Model | Connections | Flow Capacity Tons@1psi(For KW,multiply tons by 3.5)*++ | (In)Dimensions | ||||||||
|
| ODF | SAE | R134a | R12a | R22/R410a | R407C | R404A/R507 | R502 | A | B | C |
| CW-032 |
| 1/4 | 2 | 1.6 | 2.2 | 2.1 | 1.4 | 1.4 | 4.37 | 1.65 | 2.6 |
| CW-032S | 1/4 |
| 2.7 | 2.2 | 2.9 | 2.9 | 2 | 1.9 | 3.86 | 1.65 | 2.6 |
| CW-033 |
| 3/8 | 3 | 2.5 | 3.3 | 3.2 | 2.2 | 2.1 | 4.76 | 1.65 | 2.6 |
| CW-033S | 3/8 |
| 3 | 2.5 | 3.3 | 3.2 | 2.2 | 2.1 | 4.86 | 1.65 | 2.6 |
| CW-052 |
| 1/4 | 2.1 | 1.7 | 2.3 | 2.2 | 1.5 | 1.5 | 4.76 | 1.65 | 2.99 |
| CW-052S | 1/4 |
| 3.3 | 2.7 | 3.6 | 3.5 | 2.4 | 2.3 | 4.41 | 2.5 | 2.99 |
| CW-053 |
| 3/8 | 3.5 | 2.9 | 3.8 | 3.7 | 2.5 | 2.5 | 5.16 | 2.5 | 2.99 |
| CW-053S | 3/8 |
| 4.4 | 3.6 | 4.8 | 4.7 | 3.2 | 3.1 | 4.49 | 2.5 | 2.99 |
| CW-082 |
| 1/4 | 2.3 | 1.9 | 2.5 | 2.4 | 1.7 | 1.6 | 5.55 | 2.5 | 3.78 |
| CW-082S | 1/4 |
| 3.1 | 2.5 | 3.4 | 3.3 | 2.2 | 2.2 | 5.2 | 2.5 | 3.78 |
| CW-083 |
| 3/8 | 4 | 3.3 | 4.3 | 4.3 | 2.9 | 2.8 | 5.94 | 2.5 | 3.78 |
| CW-083S | 3/8 |
| 4.5 | 3.7 | 4.9 | 4.8 | 3.3 | 3.2 | 5.28 | 2.5 | 3.78 |
| CW-084 |
| 1/2 | 6.7 | 5.5 | 7.3 | 7.1 | 4.9 | 4.7 | 6.14 | 2.5 | 3.78 |
| CW-084S | 1/2 |
| 7.1 | 5.8 | 7.7 | 7.5 | 5.1 | 5 | 5.35 | 2.5 | 3.78 |
| CW-163 |
| 3/8 | 3.9 | 3.2 | 4.2 | 4.1 | 2.8 | 2.7 | 6.89 | 2.5 | 4.72 |
| CW-163S | 3/8 |
| 4.4 | 3.6 | 4.8 | 4.7 | 3.2 | 3.1 | 6.22 | 2.5 | 4.72 |
| CW-164 |
| 1/2 | 6.1 | 5 | 4.4 | 6.5 | 4.2 | 5.1 | 7.09 | 2.5 | 4.72 |
| CW-164S | 1/2 |
| 8.5 | 7 | 9.2 | 9 | 6.2 | 6 | 6.3 | 2.5 | 4.72 |
| CW-165 |
| 5/8 | 9.7 | 8 | 10.5 | 10.3 | 7 | 6.8 | 7.48 | 2.5 | 4.72 |
| CW-165S | 5/8 | 7/8 | 10.1 | 8.3 | 10.9 | 10.7 | 7.3 | 7.1 | 6.61 | 2.5 | 4.72 |
| CW-167S | 7/8 |
| 15.5 | 12.7 | 16.8 | 16.5 | 11.2 | 10.9 | 6.97 | 2.5 | 4.72 |
| CW-304 |
| 1/2 | 8.1 | 6.6 | 8.8 | 8.6 | 5.9 | 5.7 | 5.94 | 2.99 | 7.52 |
| CW-304S | 1/2 |
| 10 | 8.2 | 10.8 | 10.6 | 7.2 | 7 | 9.90 | 2.99 | 7.52 |
| CW-305 |
| 5/8 | 10.6 | 8.7 | 11.5 | 11.3 | 7.7 | 7.5 | 10.28 | 2.99 | 7.52 |
| CW-305S | 5/8 |
| 12.5 | 10.3 | 13.5 | 13.3 | 9.1 | 8.8 | 9.41 | 2.99 | 7.52 |
| CW-306 |
| 3/4 | 13 | 10.8 | 14.2 | 14 | 9.6 | 9.4 | 10.67 | 2.99 | 7.52 |
| CW-306S | 3/4 |
| 14.8 | 12.1 | 16 | 15.7 | 10.7 | 10.4 | 9.57 | 2.99 | 7.52 |
| CW-307S | 7/8 |
| 16.8 | 13.8 | 18.2 | 17.9 | 12.2 | 11.8 | 9.76 | 2.99 | 7.52 |
| CW-309S | 1-1/8 |
| 19.6 | 16.1 | 21.2 | 20.8 | 14.2 | 13.8 | 9.8 | 2.99 | 7.52 |
| CW-415 |
| 5/8 | 12 | 9.8 | 13 | 12.8 | 8.7 | 8.5 | 10.39 | 3.5 | 7.64 |
| CW-415S | 5/8 |
| 17 | 14 | 18.4 | 18.1 | 12.3 | 12 | 9.53 | 3.5 | 7.64 |
| CW-417S | 7/8 |
| 20.3 | 16.6 | 22 | 21.6 | 14.7 | 14.3 | 9.88 | 3.5 | 7.64 |
| CW-419S | 1-1/8 |
| 27.7 | 22.7 | 30 | 29.4 | 20.1 | 19.5 | 9.92 | 3.5 | 7.64 |
| CW-757S | 7/8 |
| 22.2 | 18.2 | 24.1 | 23.6 | 16.1 | 15.6 | 15.75 | 3.5 | 13.5 |
| CW-759S | 2-1/8 |
| 32.7 | 26.8 | 35.4 | 34.8 | 23.7 | 23 | 15.79 | 3.5 | 13.5 |
1.Q: Are you a factory or trading company?
A: We are a refrigeration group with 2 sub factories.
2.Q: What if there is a problem with quality?
A: Our products are strictly inspected before delivery , also we have a basic guarantee 1-2 years ,
we will send you new free products to replace the damaged items due to quality problem .
3.Q: What is your payment and delivery time?
A: Pay by T/T bank account transfer or alibaba ,delivery time is around 15-30days after advanced payment.
4.Q: Why with you ?
A: We are a professional refrigeration spare parts supplier to meet all your demands and service.
5.Q: I have an idea for a new product, but don't know if it can be manufactured. Can you help?
A: Sure, you can send us the relative information, we will reply you within 3 days.
